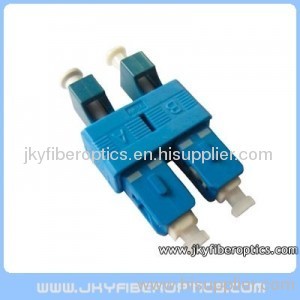

LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor
| Price: | 0.1~10.0 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor
LC(F)-SC(M) Female to Male Duplex Hybrid Adaptor
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.
Features:
Types: FC-LC, FC-SC, FC-ST, FC-MU, SC-ST,SC-LC,SC-MU,ST-LC,SMA-ST,SMA-FC…
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC\APC\UPC optional
Female to Female,or Female to Male are available.
Types: FC-LC, FC-SC, FC-ST, FC-MU, SC-ST,SC-LC,SC-MU,ST-LC,SMA-ST,SMA-FC…
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC\APC\UPC optional
Female to Female,or Female to Male are available.
Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Specification:
Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU,SMA-ST,SMA-FC… | MTRJ | E2000 | ||||||
SM | MM | SM | MM | SM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Durability | Time | >1000 | >1000 | >1000 | ||||||
Operating Temperature | ℃ | -40~75 | -40~75 | -40~75 | ||||||
Storage Temperature | ℃ | -45~85 | -45~85 | -45~85 | ||||||
P/N:FOAD-LC(F)-SC(M)-02-HMetal
